        Cross-roller bearing, steel, compact

Item description/product images

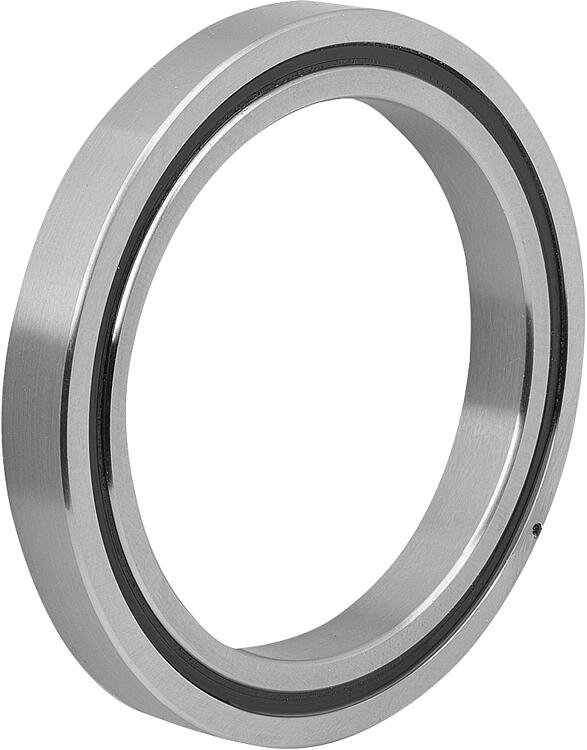

DescriptionMaterial:Inner ring, outer ring and rolling elements, bearing steel.Note:The compact cross-roller bearing is available in two widths: 5 mm and 8 mm. It is characterised by a robust and compact design and is ideal for applications where space is limited and for lightweight constructions.

There are two options for the radial bearing play: Bearings with normal clearance C1 (order number: 23831-0XXXXX) and pre-tensioned bearings S1 (order number: 23831-1XXXXX).

The cross-roller bearings have tolerance class P0. This tolerance class describes the radial and axial deviation of the inner and outer ring.

The cross-roller bearings are sealed on both sides.

Other bearing clearances and tolerance classes are available on request.Technical data:See Downloads, Technical Information.Drawing reference:

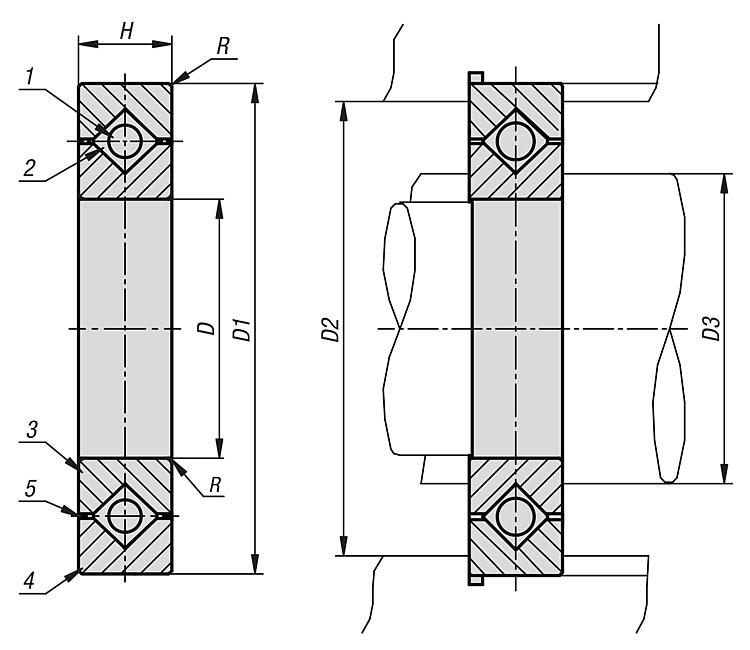

1) Rollers
2) Spacer
3) Inner ring
4) Outer ring
5) Seal

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 23831-05 Cross-roller bearing, steel, compact

196 kB

Technical information for cross-roller bearings

128 kB

Drawings

Item selection/filter

Order No.	Version 2	D	D1	H	R	D2	D3	Dynamic base loads kN	Static base loads kN	Price
23831-05-002005	Normal play	20	31	5	0,5	27	22,5	1,4	1,29	149.42 €
23831-05-003005	Normal play	30	41	5	0,5	37	32,5	1,77	1,97	149.53 €
23831-05-004005	Normal play	40	51	5	0,5	47	42,5	2	2,52	149.65 €
23831-05-005005	Normal play	50	61	5	0,5	57	52,5	2,28	3,2	154.88 €
23831-05-005008	Normal play	50	66	8	0,5	62	52,5	5,1	7,19	155.81 €
23831-05-006005	Normal play	60	71	5	0,5	67	62,5	2,63	4,09	171.30 €
23831-05-006008	Normal play	60	76	8	0,5	72	62,5	5,68	8,68	172.30 €
23831-05-007005	Normal play	70	81	5	0,5	77	72,5	2,81	4,68	194.49 €
23831-05-007008	Normal play	70	86	8	0,5	82	72,5	5,98	9,8	195.57 €
23831-05-008005	Normal play	80	91	5	0,5	87	82,5	3,05	5,43	220.41 €
23831-05-008008	Normal play	80	96	8	0,5	92	82,5	6,37	11,3	212.88 €
23831-05-009005	Normal play	90	101	5	0,5	97	92,5	3,19	6,03	230.66 €
23831-05-009008	Normal play	90	106	8	0,5	102	92,5	6,67	12,4	231.90 €
23831-05-102005	Preloaded	20	31	5	0,5	27	22,5	1,4	1,29	170.04 €
23831-05-103005	Preloaded	30	41	5	0,5	37	32,5	1,77	1,97	170.15 €
23831-05-104005	Preloaded	40	51	5	0,5	47	42,5	2	2,52	176.23 €
23831-05-105005	Preloaded	50	61	5	0,5	57	52,5	2,28	3,2	194.26 €
23831-05-105008	Preloaded	50	66	8	0,5	62	52,5	5,1	7,19	177.25 €
23831-05-106005	Preloaded	60	71	5	0,5	67	62,5	2,63	4,09	194.37 €
23831-05-106008	Preloaded	60	76	8	0,5	72	62,5	5,68	8,68	195.37 €
23831-05-107005	Preloaded	70	81	5	0,5	77	72,5	2,81	4,68	219.34 €
23831-05-107008	Preloaded	70	86	8	0,5	82	72,5	5,98	9,8	220.42 €
23831-05-108005	Preloaded	80	91	5	0,5	87	82,5	3,05	5,43	246.09 €
23831-05-108008	Preloaded	80	96	8	0,5	92	82,5	6,37	11,3	238.56 €
23831-05-109005	Preloaded	90	101	5	0,5	97	92,5	3,19	6,03	260.66 €
23831-05-109008	Preloaded	90	106	8	0,5	102	92,5	6,67	12,4	261.89 €
