23454Quick-fit couplings with angular and radial offset compensation |
go back | |
|

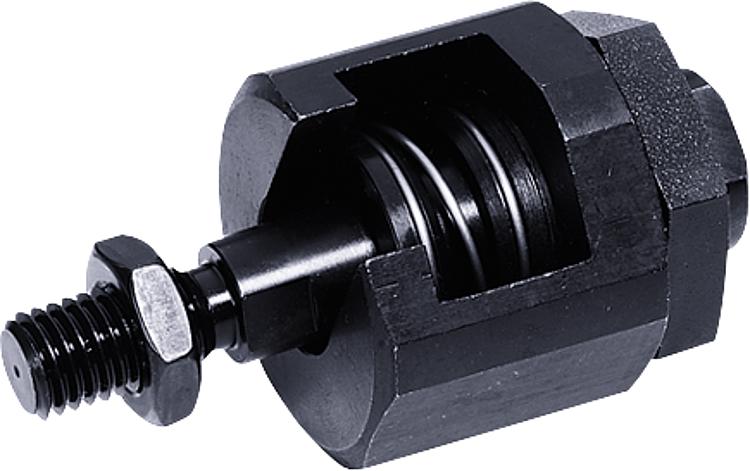

Item description/product images |
  |

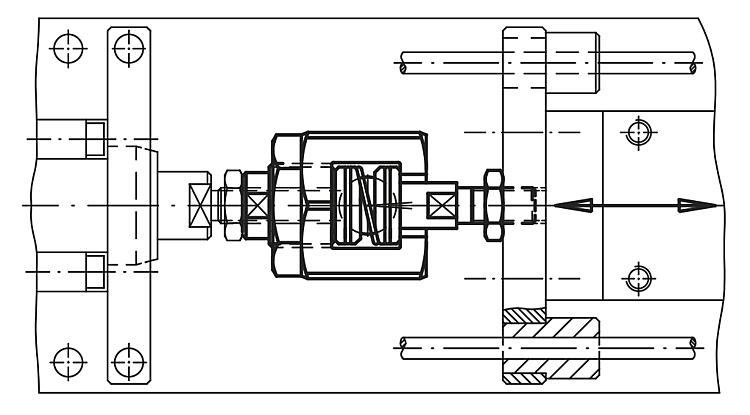

DescriptionMaterial:Coupling part carbon steel. Claw and seat steel. Nut carbon steel. Locknut (EN 24035) grade 8.8 steel. Spring stainless steel.Version:Coupling part nitrided, black. Claw and seat tempered and phosphated. Nut phosphated. Locknut black.Note: Quick-fit coupling, adjustable without axial play, including angular and radial offset compensation. Suitable for multiple applications, e.g. for non-aligned linear-movements. Solid and compact design, no loose elements. Assembly and disassembly with a T-slot; a manual re-adjustment is not necessary. The quick-fit coupling can be linked to all commonly used pneumatic and hydraulic lifting cylinders via the connecting thread.  DownloadHere is all the information as a PDF datasheet: Are you looking for CAD data? These can be found directly in the product table.
|

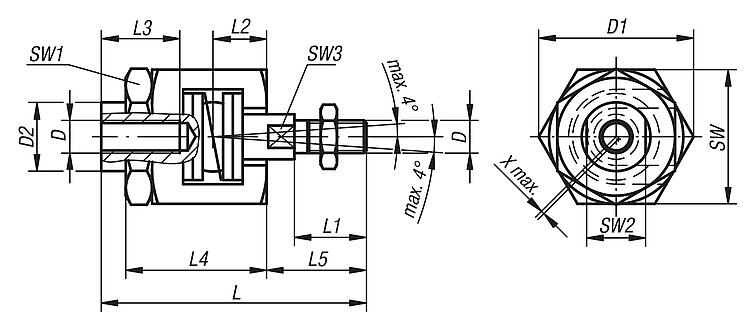

Drawings |
 |
Item selection/filter |
| Order No. | D | D1 | D2 | L | L1 | L2 | L3 min. | L4 | L5 | SW | SW1 | SW2 | SW3 | radial offset compensation X max. | Max. permissible tensile and compressive stress kN | CAD | Acc. | Price | Order |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 23454-06 | M6 | 24,5 | 9,6 | 52 | 14 | 9,5 | 13 | 29 | 18,5 | 22 | 19 | 8 | 5 | 0,6 | 2,5 |  | 57.71 € | ||
| 23454-08 | M8 | 30 | 15 | 63 | 18 | 11,5 | 16 | 33 | 23,5 | 27 | 24 | 13 | 7 | 0,6 | 4,5 | | 62.47 € | ||
| 23454-10 | M10 | 44 | 21 | 81 | 22 | 16 | 24 | 43 | 30,5 | 41 | 36 | 18 | 12 | 0,7 | 6,5 | | 84.21 € | ||
| 23454-101 | M10x1,25 | 44 | 21 | 81 | 22 | 16 | 24 | 43 | 30,5 | 41 | 36 | 18 | 12 | 0,7 | 6,5 | | 84.21 € | ||
| 23454-12 | M12 | 44 | 21 | 85 | 26 | 16 | 24 | 43 | 34,5 | 41 | 36 | 18 | 12 | 0,7 | 10 | | 85.11 € | ||
| 23454-121 | M12x1,25 | 44 | 21 | 85 | 26 | 16 | 24 | 43 | 34,5 | 41 | 36 | 18 | 12 | 0,7 | 10 | | 85.11 € | ||
| 23454-16 | M16 | 60 | 32 | 121 | 34 | 26 | 34 | 62 | 45 | 55 | 46 | 27 | 18 | 1 | 18 | | 119.32 € | ||
| 23454-161 | M16x1,5 | 60 | 32 | 121 | 34 | 26 | 34 | 62 | 45 | 55 | 46 | 27 | 18 | 1 | 18 | | 119.32 € | ||
| 23454-20 | M20 | 60 | 32 | 129 | 42 | 26 | 34 | 62 | 53 | 55 | 46 | 27 | 18 | 1 | 30 | | 120.27 € | ||
| 23454-201 | M20x1,5 | 60 | 32 | 129 | 42 | 26 | 34 | 62 | 53 | 55 | 46 | 27 | 18 | 1 | 30 | | 120.27 € |
