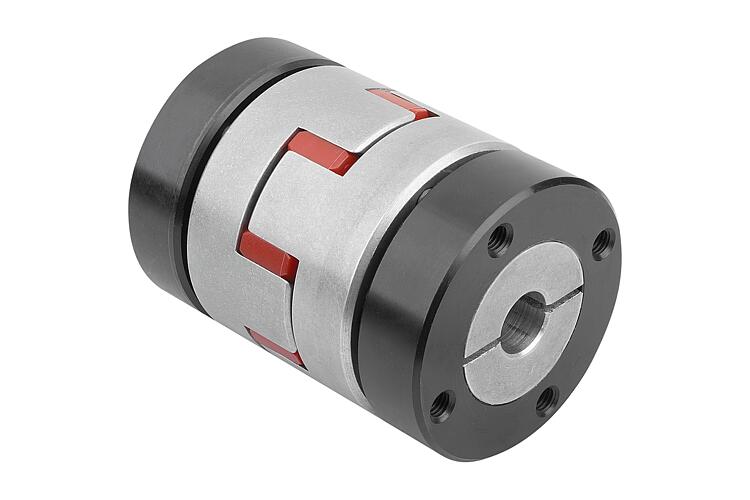

        Elastomer dog couplings with conical hub and clamping ring (similar to DIN 69002)

Item description/product images

DescriptionMaterial:Spider polyurethane hardness Shore 98A.
Hub aluminium.
Conical ring carbon steel.Note:This coupling series is particularly suitable for use in high speed main spindle or drill spindle drives. Before the plug-in assembly, both clamping ring hubs must be fastened to the shafts with the correct tightening torque. Lightly oil the spider to ease assembly.Assembly:The shaft to hub bore fit should be a transition fit. The play should be max. 0.02 mm. i.e:
shaft Ø 25 k6
bore Ø 25 G6.
Bores smaller than D1/D2 min. are possible, however an optimal transfer of the nominal torque is no longer guaranteed.
On request:Hub bores D1 and D2 with separate tolerance class or range.Drawing reference:

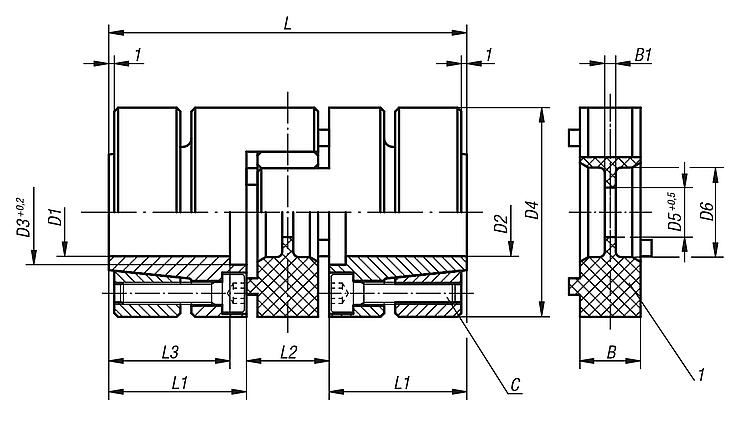

1) elastomer spider

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 23021 Elastomer dog couplings with conical hub and clamping ring (similar to DIN 69002)

169 kB

Technical information about shaft couplings

2,3 MB

Drawings

Overview of items (compressed)

Item selection/filter

Order No.	Size	Nominal torque Nm	Moment of inertia (10⁻³ kgm²)	Static resistance to torsion Nm/arcmin	Max. axial shaft displacement ±	Max. lateral shaft displacement	Radial spring stiffness N/mm	Tightening torque of screws Nm	Max. rpm	Price
23021-010	10	10	0,015	0,04	0,5	0,1	600	2	30000	116.67 €
23021-017	17	17	0,05	0,24	0,5	0,1	2100	3	24000	144.28 €
23021-043	43	43	0,19	0,4	0,5	0,1	2500	6	19000	191.85 €
23021-060	60	60	0,28	0,6	0,5	0,1	2600	6	17500	209.30 €
23021-150	150	150	0,65	1,05	1	0,1	3300	6	15000	258.14 €
23021-320	320	320	2	2	1	0,12	4500	30	12000	324.43 €
23021-500	500	500	5,6	5,8	1	0,15	5900	50	9500	457.86 €
23021-700	700	700	13	8	1	0,15	7000	100	8000	644.05 €

Order No.	D1/D2 predrilled	D1/D2 min.	D1/D2 max.	D3	D4	D5	D6	L	L1	L2	L3	B	B1	C (DIN 912-12.9)	Price
23021-010	6	6	14	17	32	8,5	10,5	50	18,5	13	15,5	10	2	4x M3	116.67 €
23021-017	9	9	19	22	40	9,5	18	66	25	16	21	12	3	6x M4	144.28 €
23021-043	10	12	24	29	50	12,5	27	78	30	18	25	14	3	4x M5	191.85 €
23021-060	12	12	26	30	55	12,5	27	78	30	18	25	14	3	4x M5	209.30 €
23021-150	12	17	36	40	65	14,5	30	90	35	20	30	15	4	8x M5	258.14 €
23021-320	18	20	40	46	80	16,5	38	114	45	24	40	18	4	4x M8	324.43 €
23021-500	20	22	48	58	100	20,5	47	138	55	28	49	22	5	4x M10	457.86 €
23021-700	24	25	60	72	120	22,5	58	155	61	33	54	25	6	4x M12	644.05 €
