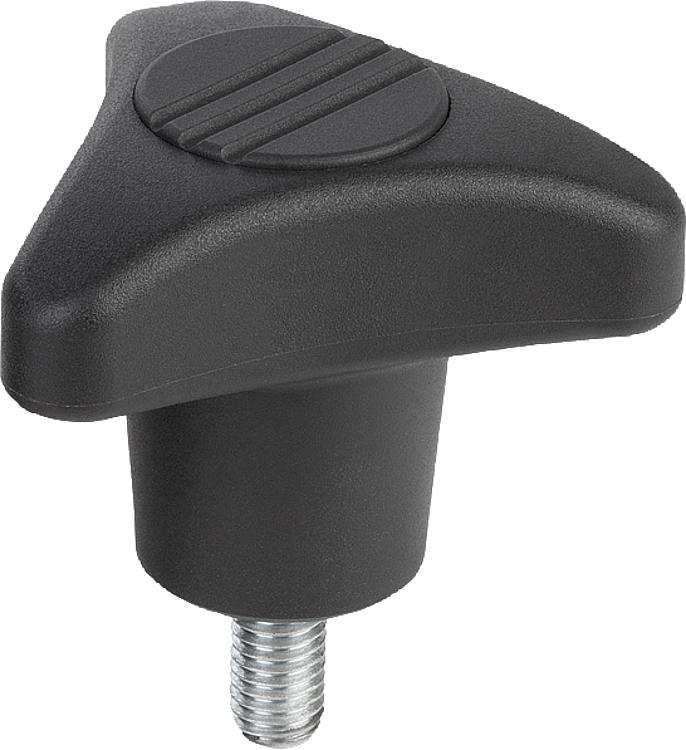

06699_AGTriangular star grip with external thread |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Grip glass-bead reinforced thermoplastic.
Cap thermoplastic.
Steel parts grade 5.8.Version:Grip and cap black grey (RAL 7021).
Steel parts blue-passivated.On request:Other screw lengths and colours.
Metal parts stainless steel.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Order No.
| Form | D
| D1 | D2 | H | H1 | L | T | CAD | Acc. | Price | Order |
|---|
| 06699-18008X | L | M8 | 80 | 29,2 | 53,5 | 31 | 15 | - |  | | 5.26 € | | | 06699-18008X | L | M8 | 80 | 29,2 | 53,5 | 31 | 20 | - | | | 5.26 € | | | 06699-18008X | L | M8 | 80 | 29,2 | 53,5 | 31 | 30 | - | | | 5.45 € | | | 06699-18008X | L | M8 | 80 | 29,2 | 53,5 | 31 | 40 | - | | | 5.58 € | | | 06699-18008X | L | M8 | 80 | 29,2 | 53,5 | 31 | 50 | - | | | 5.58 € | | | 06699-18010X | L | M10 | 80 | 29,2 | 53,5 | 31 | 15 | - | | | 5.58 € | | | 06699-18010X | L | M10 | 80 | 29,2 | 53,5 | 31 | 20 | - | | | 5.58 € | | | 06699-18010X | L | M10 | 80 | 29,2 | 53,5 | 31 | 30 | - | | | 5.58 € | | | 06699-18010X | L | M10 | 80 | 29,2 | 53,5 | 31 | 40 | - | | | 5.72 € | | | 06699-18010X | L | M10 | 80 | 29,2 | 53,5 | 31 | 50 | - | | | 5.72 € | | | 06699-18012X | L | M12 | 80 | 29,2 | 53,5 | 31 | 15 | - | | | 5.72 € | | | 06699-18012X | L | M12 | 80 | 29,2 | 53,5 | 31 | 20 | - | | | 5.72 € | | | 06699-18012X | L | M12 | 80 | 29,2 | 53,5 | 31 | 30 | - | | | 5.72 € | | | 06699-18012X | L | M12 | 80 | 29,2 | 53,5 | 31 | 40 | - | | | 6.04 € | | | 06699-18012X | L | M12 | 80 | 29,2 | 53,5 | 31 | 50 | - | | | 6.04 € | |
