        Star grips similar to DIN 6336

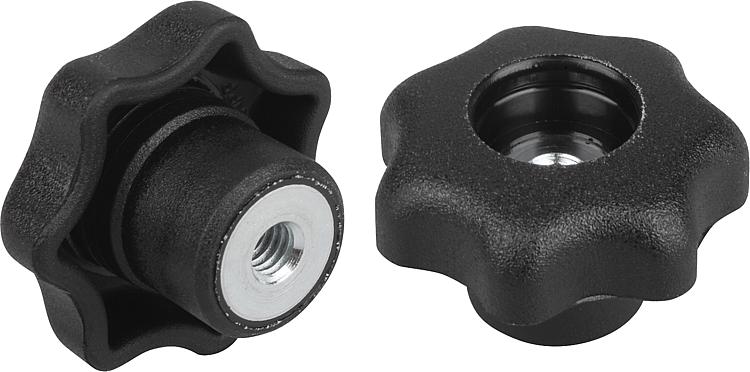

        Star grips similar to DIN 6336, internal thread without cap, Form D

Item description/product images

DescriptionMaterial:Black thermoplastic, bush in steelVersion:Bush trivalent blue passivated.On request:Other colours or designs, such as company logo.

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 06220_D Star grips similar to DIN 6336, internal thread without cap, Form D

200 kB

Drawings

Item selection/filter

Order No.	Form	D	D1	D8	H	H3	T	Price
06220-504	D	M4	25	12	16	8	10	0.62 €
06220-505	D	M5	25	12	16	8	10	0.62 €
06220-5061	D	M6	25	12	16	8	10	0.62 €
06220-5051	D	M5	32	14	20	10	10	0.66 €
06220-506	D	M6	32	14	20	10	10	0.66 €
06220-508	D	M8	40	18	25	13	14	0.72 €
06220-5101	D	M10	40	18	25	13	14	0.72 €
06220-5081	D	M8	50	22	32	17	14	1.14 €
06220-510	D	M10	50	22	32	17	14	1.14 €
06220-5121	D	M12	50	22	32	17	18	1.14 €
06220-5102	D	M10	63	26	40	21	14	2.08 €
06220-512	D	M12	63	26	40	21	18	2.08 €
06220-516	D	M16	63	26	40	21	18	2.99 €
