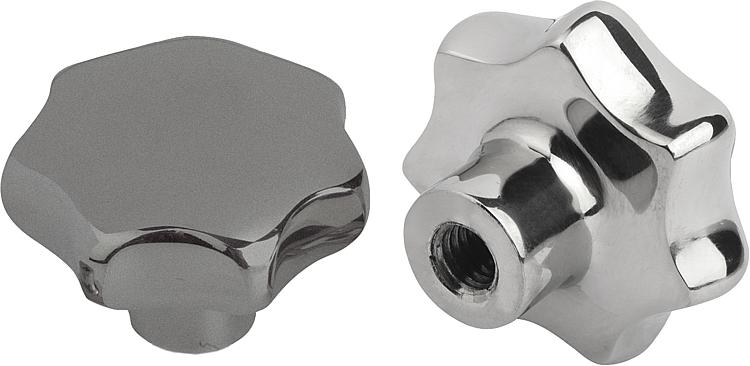

Star grips similar to DIN 6336, stainless steel, Form E, blind tapped hole
 06194_E

Star grips similar to DIN 6336, stainless steel, Form E, blind...

 go back

Item description/product images
DescriptionMaterial:

Stainless steel 1.4308.

Version:Ground and polished or blasted.On request:With external thread.Special features:
Stainless steelRoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
Datasheet 06194_E Star grips similar to DIN 6336, stainless steel, Form E, blind tapped hole 178 kB

Drawings

Star grips similar to DIN 6336, stainless steel, Form E, blind tapped hole

Item selection/filter
Order No.FormSurface finish
body		D

D1D2HH3TT1CADAcc.PriceOrder
06194-532062EpolishedM6321221101215 8.97 €
06194-540082EpolishedM8401426131518 11.32 €
06194-550102EpolishedM10501834171821 14.65 €
06194-563122EpolishedM12632042212225 18.57 €
06194-532063EblastedM6321221101215 8.06 €
06194-540083EblastedM8401426131518 10.19 €
06194-550103EblastedM10501834171821 13.19 €
06194-563123EblastedM12632042212225 16.72 €
