Mounting brackets, Form A
 03099_A

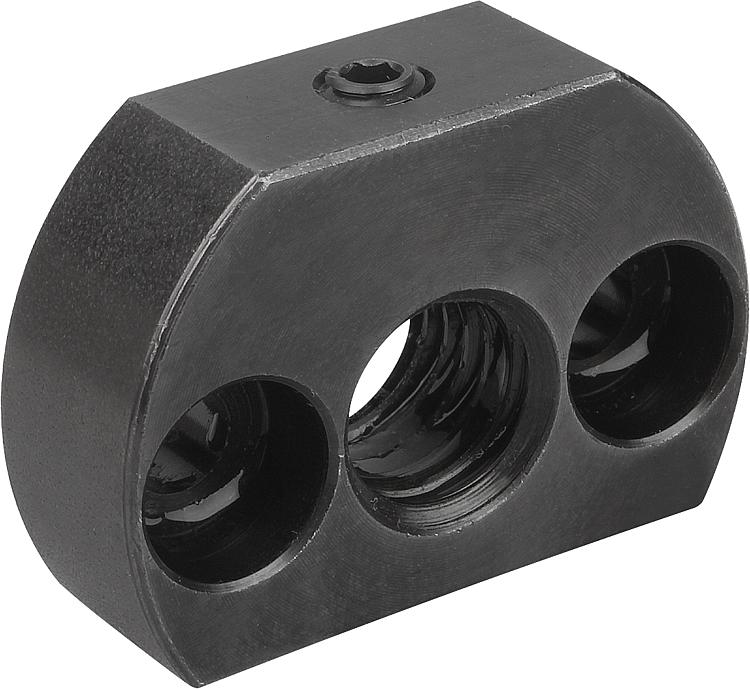

Mounting brackets, Form A

 go back

Item description/product images
DescriptionMaterial:Steel.Version:Black oxidised.Note:These mounting brackets are assembly aids for cam-action indexing plungers and extend their application field. They can also be used with other indexing plungers or other elements that have a suitable thread. Fastened using cap screws.Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
Datasheet 03099_A Mounting brackets, Form A 227 kB

Drawings

Mounting brackets, Form A

Item selection/filter
Order No.

FormD1D2D3D4KL1L3SCADAcc.PriceOrder
03099-112AM12365,51024251012 10.51 €
03099-1121AM12x1,5365,51024251012 10.51 €
03099-116AM16465,51032331315 11.40 €
03099-1161AM16x1,5465,51032331315 11.40 €
03099-120AM20465,51032331315 14.10 €
03099-1201AM20x1,5465,51032331315 11.40 €
