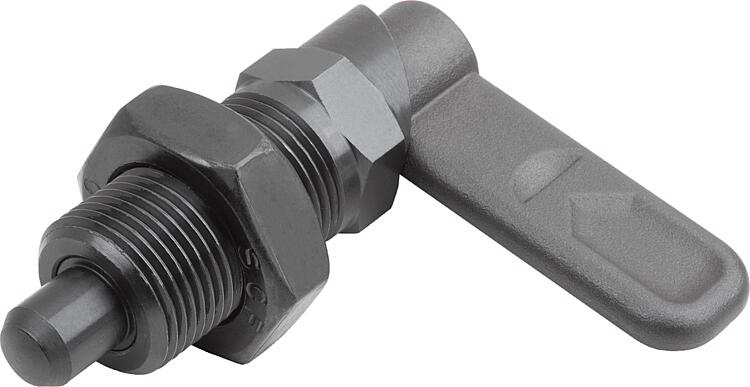

        Cam-action indexing plunger, with hexagon
        Cam-action indexing plunger, steel with hexagon, Form B

Item description/product images

DescriptionProduct description:Cam-action indexing plunger are used where any change in locking position due to lateral forces should be prevented.
Turning the grip through 180° retracts the indexing pin, enabling a change in the indexed position.
The notch ensures that the grip remains in this position and the indexing pin remains retracted.
Material:Grip 1.0503.
Threaded sleeve and indexing pin steel.
Spring 1.4310.
Grip cap thermoplastic PA.
Version:Threaded sleeve and grip black oxidised.
Indexing pin hardened, ground and black oxidised.
Spring bright.
Grip cap in various colours:
- black grey RAL 7021.
- pure orange RAL 2004.
- colza yellow RAL 1021.
- traffic red RAL 3020.
- signal green RAL 6032.
- traffic blue RAL 5017.
- light grey RAL 7035.
Advantages:Turning the grip through 180° retracts the pin.
Optionally available with coloured plastic grip caps.
Sleeves with a hexagon serve as assembly aids.
On request:Special versions.
Accessory:Mounting bracket 03099.
Positioning bushes 03099-50, 03099-60, 03099-61.
Drawing reference:

Form A: without grip cap or nut.
Form B: without grip cap, with nut.
Form C: with grip cap, without nut.
Form D: with grip cap and nut.

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 03099-12_B Cam-action indexing plunger, steel with hexagon, Form B

157 kB

Drawings

Item selection/filter

Order No.	Form	D	D1	D2	L	L1	L3	B	B1	H	Fx30°	SW1	SW2	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Price
03099-12-050616	B	6	M16	16	61,2	40	26	14,4	4,8	10	1,8	16	24	15	35	16.42 €
03099-12-050816	B	8	M16	16	61,2	40	26	14,4	4,8	10	2,3	16	24	15	35	16.42 €
03099-12-0508121	B	8	M12x1,5	12	47,4	30	19	10,8	3,6	8	2,3	12	19	8	15	13.66 €
03099-12-051016	B	10	M16	16	61,2	40	26	14,4	4,8	10	2,8	16	24	15	35	16.42 €
03099-12-0508161	B	8	M16x1,5	16	61,2	40	26	14,4	4,8	10	2,3	16	24	15	35	16.42 €
03099-12-0504101	B	4	M10x1	10	38,5	25	15	9	3	6	1	10	17	8	14	13.50 €
03099-12-050610	B	6	M10	10	38,5	25	15	9	3	6	1,8	10	17	8	14	13.50 €
03099-12-050612	B	6	M12	12	47,4	30	19	10,8	3,6	8	1,8	12	19	8	15	13.66 €
03099-12-0510161	B	10	M16x1,5	16	61,2	40	26	14,4	4,8	10	2,8	16	24	15	35	16.42 €
03099-12-0505121	B	5	M12x1,5	12	47,4	30	19	10,8	3,6	8	1,3	12	19	8	15	13.66 €
03099-12-050812	B	8	M12	12	47,4	30	19	10,8	3,6	8	2,3	12	19	8	15	13.66 €
03099-12-0505101	B	5	M10x1	10	38,5	25	15	9	3	6	1,3	10	17	8	14	13.50 €
03099-12-0506161	B	6	M16x1,5	16	61,2	40	26	14,4	4,8	10	1,8	16	24	15	35	16.42 €
03099-12-0506101	B	6	M10x1	10	38,5	25	15	9	3	6	1,8	10	17	8	14	13.50 €
03099-12-050410	B	4	M10	10	38,5	25	15	9	3	6	1	10	17	8	14	13.50 €
03099-12-050512	B	5	M12	12	47,4	30	19	10,8	3,6	8	1,3	12	19	8	15	13.66 €
03099-12-050820	B	8	M20	20	71	50	30	18	6	12	2,3	20	30	20	60	18.92 €
03099-12-050510	B	5	M10	10	38,5	25	15	9	3	6	1,3	10	17	8	14	13.50 €
03099-12-0506121	B	6	M12x1,5	12	47,4	30	19	10,8	3,6	8	1,8	12	19	8	15	13.66 €
03099-12-051020	B	10	M20	20	71	50	30	18	6	12	2,8	20	30	20	60	18.92 €
03099-12-051220	B	12	M20	20	71	50	30	18	6	12	3	20	30	20	60	18.92 €
03099-12-0508201	B	8	M20x1,5	20	71	50	30	18	6	12	2,3	20	30	20	60	18.92 €
03099-12-0510201	B	10	M20x1,5	20	71	50	30	18	6	12	2,8	20	30	20	60	18.92 €
03099-12-0512201	B	12	M20x1,5	20	71	50	30	18	6	12	3	20	30	20	60	18.92 €
